SSRS 3-D Clustered Column Chart

This SSRS article shows how to create a 3-D Clustered Column Chart, Show Data Labels, and format fonts and colors with an example. To demonstrate this example, right-click on the Datasets folder to create a new DataSet.

The below screenshot shows the data set that we use for this example.


The Sql query that we used above SSRS example is:

SELECT Geo.[EnglishCountryRegionName] AS [Country]
	,Cust.EnglishOccupation AS Occupation
	,SUM(Fact.SalesAmount) AS Sales
FROM  DimCustomer AS Cust
INNER JOIN FactInternetSales AS Fact ON Cust.CustomerKey = Fact.CustomerKey
INNER JOIN [DimGeography] AS Geo ON Cust.GeographyKey = Geo.GeographyKey
GROUP BY Geo.[EnglishCountryRegionName],Cust.EnglishOccupation

SSRS 3-D Clustered Column Chart

To add a 3-D Clustered Column, right-click the report area, choose Insert, and then choose the chart option from the context menu. Otherwise, drag and drop the chart from the toolbox to the report area.

Insert a Chart

Select the 3-D Clustered Column Chart from the window and click OK to add to the report area.

Choose the SSRS 3-D Clustered Column Chart

Use Plus button or drag the fields to the Values and Category Groups section.

Add Columns to the Values and Category Groups

Here, we added the Sales column to Values, the Country column to Category Groups, and Occupation Field to Series Groups. Next, right-click on the 3D clustered Columns and select the Show Data Labels option to add labels.

Show Data labels in SSRS 3-D Clustered Column Chart

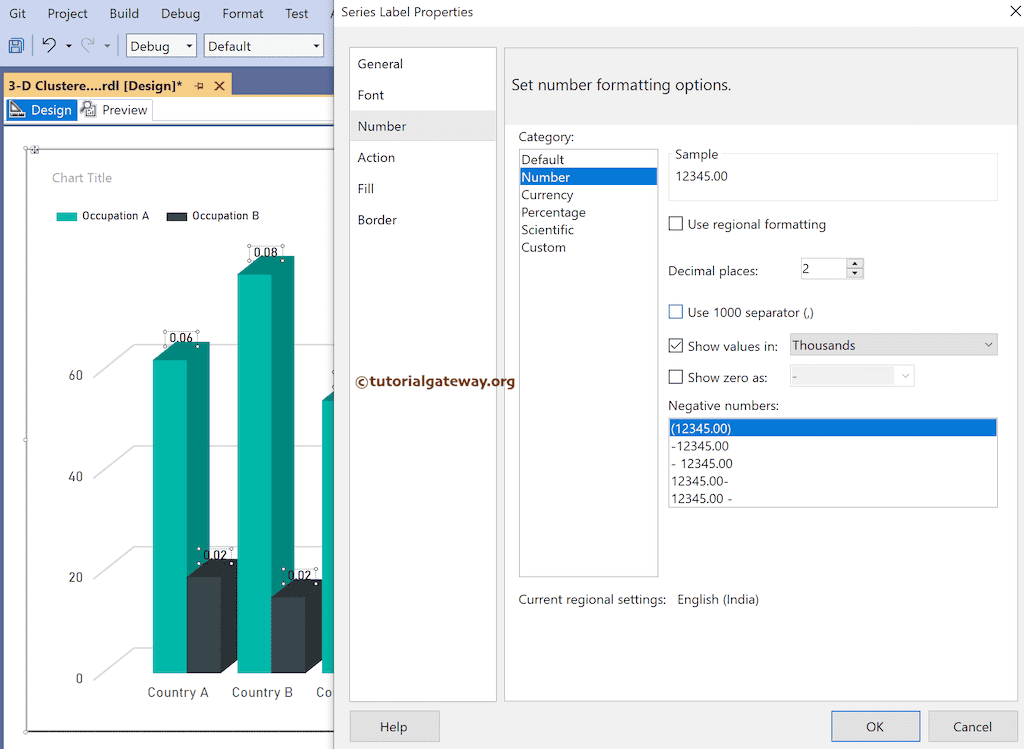

Right-click the Data Labels and select the Series Label Properties option to format Number as Currency and show values in Thousands.

Format the Data Label Numbers

Click the preview button to see the 3D Clustered Columns chart.

Preview the SSRS 3-D Clustered Column Chart

Select the complete chart and change the palette to Earth Tone.

Change the palette

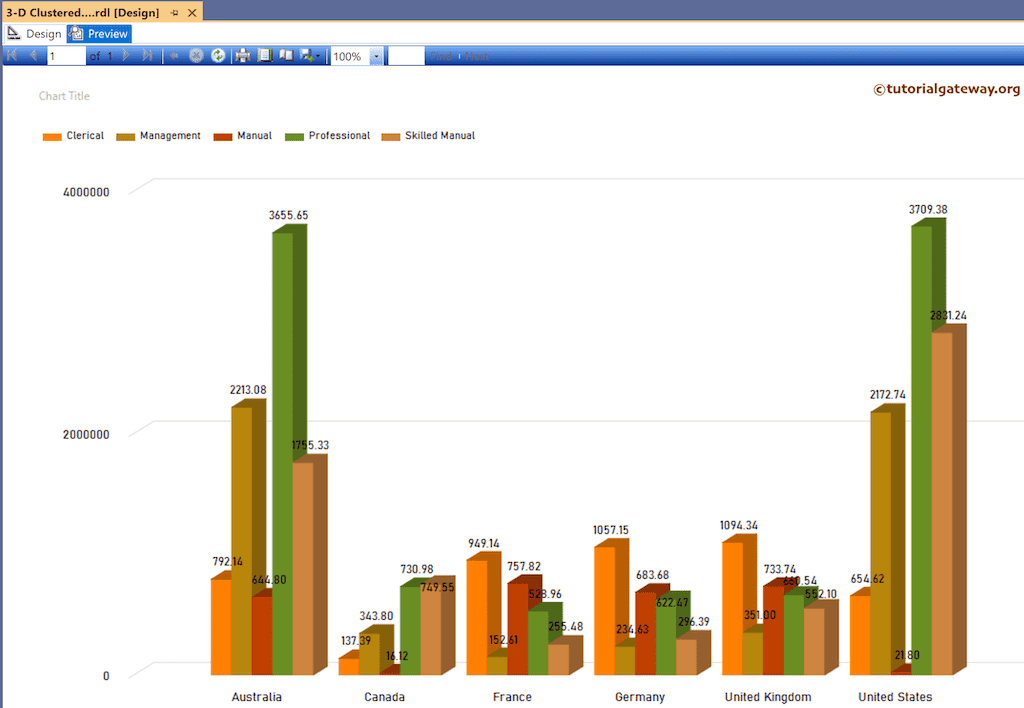

Preview the report.

SSRS 3-D Clustered Column Chart Preview
